MARKET
APPLICATIONS: Military, Marine, Aviation, Law Enforcement, Hardware/Tool, Automotive, Sporting Goods
and Consumer.

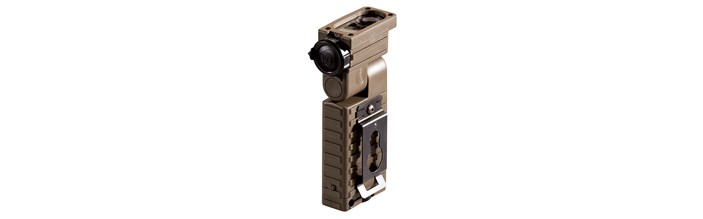

DESCRIPTION: Compact, high performance, multi-source LED flashlight. This flashlight has
been engineered to meet a variety of hands free task illumination requirements with various
color LEDs operable at varying intensities and runtimes. The light features a 185 degree tilting
head and belt or web clip to allow positioning of the light beam at the work area.
CASE MATERIAL: High impact super tough nylon case offers exceptional durability and weather resistance.
All openings are O-ring sealed. Available in Coyote and OD Green.
DIMENSIONS: Maximum Length: 2.31 in. (5.87 cm)
Maximum Width: 1.05 in. (2.67 cm)
Maximum Depth: 4.63 in. (11.76 cm)
WEIGHT: 3.28 ounces (93 grams) 4.96 ounces (141 grams) *
LENS: Unbreakable polycarbonate lens with scratch resistant coating. Gasket sealed.
LIGHT SOURCES: One half (½) Watt White High Flux LED, 50,000 Hr LED life.
5mm Green LED (commercial), peak wavelength 520 nanometers, 100,000 Hr LED life.
5mm IR LED (military), peak wavelength 880 nanometers, 100,000 Hr LED life.
5mm Red LED, peak wavelength 630 nanometers, 100,000 Hr LED life.
5mm Blue LED, peak wavelength 470 nanometers, 100,000 Hr LED life.
LIGHT OUTPUT: ½ Watt LED Rating: 20 Lumens typical at high (100%) intensity. Light output electronically
regulated for consistent intensity output over rated battery capacity.
ON/OFF/INTESITY
MODE SELECTION: Compound On-Off mode selector switch ergonomically separates On-Off-Dimming and mode
selection functions. Design does not require the operator to access separate switching
locations on the device. Rubber dome actuator and 4 position pull-to-turn locking rotary
selector knob with tactile indicator provides easy operation even when wearing heavy gloves.
